銅芯聚氯乙烯絕緣屏蔽聚氯乙烯護套軟電線
型號規格：RVVP 3×32/0.20（3×1.00平方毫米）
產品名稱：銅芯聚氯乙烯絕緣屏蔽聚氯乙烯護套軟電線
執行標準：JB/T8734.5-2016和凌宇公司企業標準
1、應用：該系列產品（3×0.12mm2至12×0.75mm2）適用通訊、音頻、廣播音響系統、電腦、儀表和電子設備及自動化裝置等需防干擾線路屏蔽線纜。
2、產品說明：

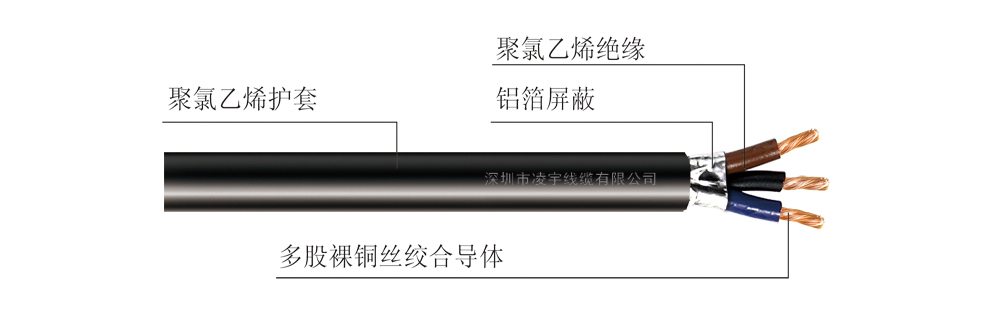

◆導體使用多支退火裸銅絞合
◆聚氯乙烯絕緣
◆鋁箔屏蔽加鍍錫軟銅線編織屏蔽
◆屏蔽編織密度不小于80%
◆聚氯乙烯護套
◆額定電壓Uo/U為300/300V
◆長期允許工作溫度不超過70℃
|
RVVP屏蔽電線綜合技術參數 |
|
型 號 |
芯數×標稱截面 mm2 |
內導體結構
No./mm |
編織網屏蔽+鋁箔 n支×0.1mm |
產品平均外徑 |
20℃時導體 電阻最大值 Ω/km |
70℃時絕緣 電阻最小值 ΜΩ·km |
產品執行標準 |
|
下限
mm |
上限
mm |
|
RVVP |
1×0.30 |
1×16/0.15 |
64 |
2.9 |
3.5 |
69.2 |
0.014 |
JB/T8734.5-2016 |
|
RVVP |
2×0.12 |
2×7/0.15雙絞 |
96 |
3.7 |
4.9 |
158 |
0.016 |
|
RVVP |
2×0.20 |
2×12/0.15雙絞 |
96 |
4.1 |
5.3 |
92.3 |
0.013 |
|
RVVP |
2×0.30 |
2×16/0.15雙絞 |
128 |
4.8 |
6.2 |
69.2 |
0.014 |
|
RVVP |
2×0.50 |
2×28/0.15雙絞 |
128 |
5.3 |
6.8 |
39.0 |
0.012 |
|
RVVP |
2×0.75 |
2×24/0.20雙絞 |
128 |
5.8 |
7.4 |
26.0 |
0.010 |
|
RVVP |
2×1.00 |
2×32/0.20雙絞 |
144 |
6.4 |
8.2 |
19.5 |
0.011 |
|
RVVP |
2×1.50 |
2×48/0.20雙絞 |
144 |
7.3 |
9.2 |
13.3 |
0.0094 |
|
RVVP |
2×2.50 |
2×49/0.25雙絞 |
168 |
8.5 |
10.5 |
7.94 |
0.0086 |
|
|
RVVP |
3×0.12 |
3×7/0.15 |
96 |
3.9 |
5.1 |
158 |
0.016 |
JB/T8734.5-2016 |
|
RVVP |
3×0.20 |
3×12/0.15 |
96 |
4.5 |
5.8 |
92.3 |
0.013 |
|
RVVP |
3×0.30 |
3×16/0.15 |
128 |
5.1 |
6.5 |
69.2 |
0.014 |
|
RVVP |
3×0.50 |
3×28/0.15 |
128 |
5.6 |
7.1 |
39.0 |
0.012 |
|
RVVP |
3×0.75 |
3×24/0.20 |
128 |
6.1 |
7.8 |
26.0 |
0.010 |
|
RVVP |
3×1.00 |
3×32/0.20 |
144 |
7.2 |
9.1 |
19.5 |
0.011 |
|
RVVP |
3×1.50 |
3×48/0.20 |
168 |
8.0 |
10.0 |
13.3 |
0.0094 |
|
RVVP |
3×2.50 |
3×49/0.25 |
168 |
9.5 |
12.5 |
7.98 |
0.0086 |
|
|
RVVP |
4×0.12 |
4×7/0.15 |
112 |
4.5 |
5.8 |
158 |
0.016 |
JB/T8734.5-2016 |
|
RVVP |
4×0.20 |
4×12/0.15 |
128 |
4.9 |
6.2 |
92.3 |
0.013 |
|
RVVP |
4×0.30 |
4×16/0.15 |
128 |
5.5 |
7.0 |
69.2 |
0.014 |
|
RVVP |
4×0.50 |
4×28/0.15 |
128 |
6.5 |
8.9 |
39.0 |
0.012 |
|
|
RVVP |
4×0.75 |
4×24/0.20 |
128 |
6.8 |
9.3 |
26.0 |
0.010 |
|
RVVP |
4×1.00 |
4×32/0.20 |
144 |
7.8 |
10.5 |
19.5 |
0.011 |
|
RVVP |
4×1.50 |
4×48/0.20 |
168 |
8.4 |
11.5 |
13.3 |
0.0094 |
|
RVVP |
4×2.50 |
4×49/0.25 |
168 |
10.1 |
13.6 |
7.98 |
0.0086 |
|
RVVP |
5×0.12 |
5×7/0.15 |
128 |
4.8 |
6.2 |
158 |
0.016 |
JB/T8734.5-2016 |
|
RVVP |
6×0.12 |
6×7/0.15 |
128 |
5.2 |
6.6 |
158 |
0.016 |
|
RVVP |
6×0.20 |
6×12/0.15 |
128 |
5.7 |
7.2 |
92.3 |
0.013 |
|
RVVP |
6×0.30 |
6×16/0.15 |
144 |
6.5 |
8.2 |
69.2 |
0.014 |
|
RVVP |
6×0.50 |
6×28/0.15 |
144 |
7.6 |
10.2 |
39.0 |
0.012 |
|
|
RVVP |
6×0.75 |
6×24/0.20 |
144 |
8.0 |
10.7 |
26.0 |
0.010 |
|
RVVP |
6×1.00 |
6×32/0.20 |
168 |
9.4 |
12.4 |
19.5 |
0.011 |
|
RVVP |
7×0.12 |
7×7/0.15 |
128 |
5.2 |
6.6 |
158 |
0.016 |
JB/T8734.5-2016 |
|
RVVP |
7×0.20 |
7×12/0.15 |
128 |
5.7 |
7.2 |
92.3 |
0.013 |
|
RVVP |
8×0.12 |
8×7/0.15 |
128 |
5.7 |
7.3 |
158 |
0.016 |
|
|
RVVP |
8×0.30 |
8×16/0.15 |
144 |
7.2 |
9.1 |
69.2 |
0.014 |
|
RVVP |
8×0.50 |
8×28/0.15 |
168 |
8.4 |
11.2 |
39.0 |
0.012 |
|
RVVP |
8×0.75 |
8×24/0.20 |
168 |
8.9 |
11.8 |
26.0 |
0.010 |
|
RVVP |
9×0.12 |
9×7/0.15 |
128 |
7.1 |
9.0 |
158 |
0.016 |
|
RVVP |
9×0.30 |
9×16/0.15 |
168 |
8.2 |
10.2 |
69.2 |
0.014 |
|
RVVP |
10×0.12 |
10×7/0.15 |
144 |
6.4 |
8.1 |
158 |
0.016 |
JB/T8734.5-2016 |
|
RVVP |
10×0.30 |
10×16/0.15 |
144 |
8.7 |
10.9 |
69.2 |
0.014 |
|
RVVP |
12×0.75 |
12×24/0.20 |
168 |
11.0 |
14.3 |
26.0 |
0.010 |
|
|
RVVPS |
4×0.50 |
4×28/0.15對絞 |
144 |
7.3 |
11.7 |
41.4 |
0.012 |
|
RVVPS |
4×0.75 |
4×24/0.20對絞 |
168 |
8.0 |
12.8 |
27.6 |
0.010 |
|
RVVPS |
4×1.00 |
4×32/0.20對絞 |
168 |
8.9 |
14.2 |
20.7 |
0.011 |
|
RVVPS |
4×1.50 |
4×48/0.20對絞 |
192 |
9.6 |
15.4 |
14.1 |
0.0094 |
|
RVVPS |
|
|
192 |
11.8 |
18.9 |
8.47 |
|
